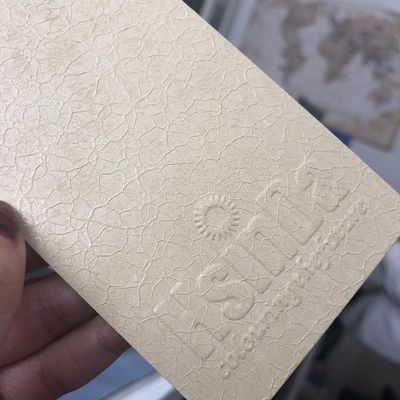

Light Color Crack Texture Spray Precision Powder Coating Environmentally Friendly

China Light Color Crack Texture Spray Precision Powder Coating Environmentally Friendly supplier
Light Color Crack Texture Spray Precision Powder Coating Environmentally Friendly supplier Light Color Crack Texture Spray Precision Powder Coating Environmentally Friendly supplier Light Color Crack Texture Spray Precision Powder Coating Environmentally Friendly supplier

Large Image :  Light Color Crack Texture Spray Precision Powder Coating Environmentally Friendly

Product Details:

Place of Origin: China
Brand Name: Hsinda
Certification: ISO,Rohs,TUV,SGS
Model Number: Epoxy Polyester

Payment & Shipping Terms:

Minimum Order Quantity: 300kg
Price: US$3.26-4.48/kg
Packaging Details: Size: 39*26*43 (unit:cm) Weight: N.W. 25kg G.W. 26kg
Delivery Time: 3-7 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Tons/Year
Contact Now
Detailed Product Description
Effect: Crack Texture Color: Ral Color Etc.
HS Code: 3907999990 Substrate: Metal\Aluminum
Curing: 180-200 Degree/6-15minutes Trademark: Hsinda





Environmentally Friendly Light Color Crack Texture Spray Precision Powder Coating



Product introduction:

Powder painting is a material coating process, where dry, free-flowing powders are applied to a target electrostatically and then cured with heat to allow it to flow and form a “skin”. It is usually used to create a pre-determined hard finish, which maintains its color hue, and is tougher than conventional paint.Our coating processes increase the life , value and usefulness of pharma , chemical equipment and many other products by creating protective and smooth surface that eliminate problems.

The raw materials of Powder coating are resins, pigments, fillers, harderner ect. Compared with lyquid paint, powder coating is environmental friendly and can reduce costs. Powder coating can form a harder finish than conventional paint and can be applied more efficient.



Product details:

Product Details
Type

Epoxy Powder Coating; Polyester Powder Coating;

Epoxy-Polyester Powder Coating

Color RAL and PANTONE or customized
Surface Finish electrostatic spray epoxy resin names paints powder coating with free sample
Gloss level electrostatic spray epoxy resin names paints powder coating with free sample
Particle Size Average 32-42μm
Specific Gravity 1.2-1.7g per cubic meter
Coverage 8-10 square meters per Kg at 30-90 μm film thickness
film thickness Not less than 100μm
Application Recommendation
Application Voltage 60-90 KV
Gun to Component Distance 15-30CM
Curing Temperature 180-200ºC,10 min-15 min
Powder coated Film Mechanical Properties
Adhesion Cross-cut(2mm),no loss of adhesion
Impact Resistance Direct impact 50kg/cm
Pencil Hardness 1H-2H
Cupping Test 6mm Mandrel
Bending Test 5mm
Powder Coated Film Chemical Resistance
Salt Spray Test 5% NaCl Solution for 500 hours - No change
Acid Resistance 5% HCL for 48 hours dip test - No change
Alkali Resistance 5% NaOH for 48 hours dip test - No change
Storage Stability
Store in ventilated, dry, clean room, temperature < 25ºC
Relative humidity 50-65%
Away from direct sunlight, fire, heat
For best performance, use within 6 months





Light Color Crack Texture Spray Precision Powder Coating Environmentally Friendly



Our advantage:

♦ Our Powder finishes are available in a vast range of colors and finishes.

♦ Including metallic effect,chrome effect,wood grain,Candy Color Powder ,MDF powder

and other special effect,making them ideal for indoor decoration of steel furniture,

and outdoor metal products such as agricultural machinery, auto parts

♦ Our products have a good storage stability ,salt spray resistance,weatherability, exterior durability,

corrosion resistance,chemicals resistance, Highly Weather- and UV-Resistant,and also Good heat flow.





Applications of Product:

♦ Electrical Household Appliances ♦ Aerospace Area
♦ Automotive Electronics ♦ Fitness Equipment
♦ Track Traffic ♦ Medical Devices
♦ Petroleum Pipes, Valve ♦ Tools & Hardware
♦ LED Lights, Outdoor Lamps ♦ Radiator & Heat Sink
♦ Glass Decoration ♦ External Facilities





Test:

Test Item Test Method Test Result
Film Thickness ISO2360 60-80um
Pencil Hardness ASTMD 3363 HB-H
Bending ISO1519 ≤10mm
Grid Test 1mm ISO2409 0 Class
Impulse Test ASTMD2794 Pass
Cupping Test ISO1520 ≥8mm
Heat Resistance 1000 hours ISO6270-1 Popping<1mm
Salt Spray 1000 hours ISO9227 Corrosion Spreading<1mm





Pack&shipping:
Trade Terms FOB, CIF, CRF, CNF
Payment Terms T/T, L/C, West Union, PayPal etc.
Delivery time 3-7 days after payment
Packaging Size: 39*26*43 (unit:cm) Weight: N.W. 25kg G.W. 26kg
Shipping By sea, by air, by courier

Light Color Crack Texture Spray Precision Powder Coating Environmentally Friendly
