Clear Powder Coating Chrome Finish

Clear Powder Coating Chrome Finish
Clear Powder Coating Chrome Finish

Large Image :  Clear Powder Coating Chrome Finish

Product Details:
Place of Origin: Chengdu,China
Brand Name: Hsinda
Certification: ISO9001; SGS; ROHS
Model Number: customized color
Payment & Shipping Terms:
Minimum Order Quantity: 300kg
Price: 6.8-15USD/KG
Packaging Details: Inner packing :polyethylene bag; Outer packing :paper carton
Delivery Time: 3-10 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000TONS/YEAR
Detailed Product Description
Gloss: Super High Gloss Main Type: Epoxy Polyester Powder Coating
Raw Materials: Resin, Curing Agent, Additives, Pigment Color: Gray Color
Curing: 180-200℃,10 Min-15 Min Texture: Smooth Surface
High Light:

chrome look powder coating


powder coating chrome finish


Clear Powder Coating Chrome Finish


Clear Powder Coating Chrome Finish Recyclable Resources Saving Environmental Protection



The powder coatings production process:

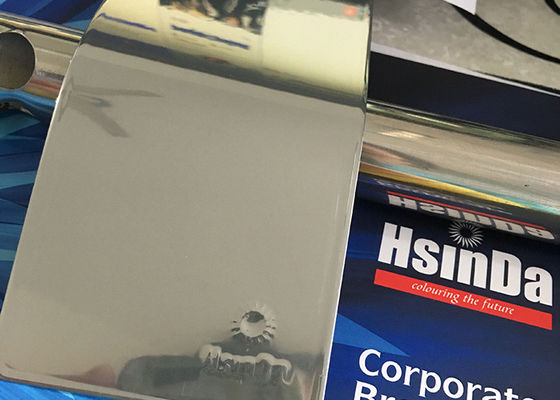

Hsinda imitation chrome silver powder coating, the surface with high gloss, the gloss can reach more than 350%, it also known as the mirror effect powder coating. It replaces the traditional low-efficiency plating technology, shocking metal decorative effect,and making your product has excellent gloss and metallic texture.


1.  The polymer granules are mixed with hardener, pigments and other powder ingredients in a mixer.
2.  The mixture is heated in an extruder.
3.  The extruded mixture is rolled flat, cooled and broken into small chips.
4.  The chips are milled and sieved to make a fine powder.



Classification of Powder Coatings


1,Functional powder coatings: powder coating of Antibacterial, Super weather resistance, Oil resistance, Dissipate heat, High temperature resistance etc.

2,Colorful powder coatings: Ral, Pantone, Customized colors

3,Special effects powder coatings: Candy, Glow in the dark, Clear top coat, Metallic, Chrome silver mirror effect, Thin coat, MDF powder coating etc.

4,Texture powder coatings: powder coating of Hammer, wood grain, water grain, crocodile skin, sand grain, wrinkle etc.


♦  Powder coatings are based on Resin,Pigments,Curing Agents,Additives.

♦  Resin(including Epoxy, polyester, hybrid)giving the basic performance to the coating.

♦  Pigments, Providing the colour and effects, such as metallic or hammer.

♦  Curing Agents, reacts with the resin to form a continuous protective film.

♦  Additives, can be used to promote variations in the performance or surface effects.




♦  Epoxy powder coating: offer the best corrosion protection.

♦  Polyester powder coating: offer the highest exterior stability and performance.

♦  Our products applied to indoor and outdoor.

♦  Our products with SGS,Tuv, Rohs, ISO Certificate.


Applications of Product


♦ Electrical Household Appliances ♦ Aerospace Area
♦ Automotive Electronics ♦ Fitness Equipment
♦ Track Traffic ♦ Medical Devices
♦ Petroleum Pipes, Valve ♦ Tools & Hardware
♦ LED Lights, Outdoor Lamps ♦ Radiator & Heat Sink
♦ Glass Decoration ♦ External Facilities



Product detail



Test Item Test Method Test Result
Film Thickness ISO2360 60-80um
Pencil Hardness ASTMD 3363 HB-H
Bending ISO1519 ≤10mm
Grid Test 1mm ISO2409 0 Class
Impulse Test ASTMD2794 Pass
Cupping Test ISO1520 ≥8mm
Heat Resistance 1000 hours ISO6270-1 Popping<1mm
Salt Spray 1000 hours ISO9227 Corrosion Spreading<1mm


Packaging & Shipping


Trade Terms FOB, CIF, CRF, CNF
Payment Terms T/T, L/C, West Union, PayPal etc.
Delivery time 3-7 days after payment
Packaging Size: 39*26*43 (unit:cm) Weight: N.W. 25kg G.W. 26kg
Shipping By sea, by air, by courier
