| Brand Name: | Hsinda |
| Model Number: | ral/pantone color |
| MOQ: | 300kg |
| Price: | 6.8-15USD/KG |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000TONS/YEAR |

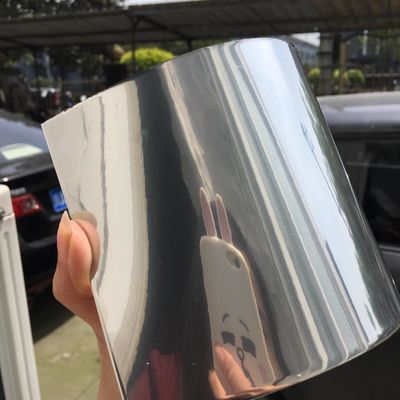

Hsinda Bonding Nickel Decorative High Gloss Electrostatic Spray Mirror Silver Chrome Powder Coat
Epoxy polyester powder coating physical properties :
Appearance: regular, porosity
Specific gravity: 1.1 ~ 1.8 (owing to the different types and different colors)
The level of liquidity: 18 ~ 35 mm
Particle size distribution: 100% less than 125 microns with more than 85% between 60 ~ 90 microns
Curing conditions :Standard 180 ℃ temperature (workpiece) 15 minutes
Low temperature type 160 ℃ temperature (workpiece) 15 minutes
Powder Coating-Interor Series
The indoor powder coating is widely applied on various indoor metal products and metal products which have high demand
for corrosion resistance, flexibility and electrical insulation such as household appliances, radiator, fitness equipment, industrial equipment,
logistics shelves, oil and gas pipelines,insulating copper/aluminum bars and wires, etc.
Product overview
| Type |
Epoxy Powder Coating; Polyester Powder Coating; Epoxy-Polyester Powder Coating |
| Color | Ral&Pantone color |
| Surface Finish | Superior gloss and color retention |
| Particle Size | Average 32-42μm |
| Specific Gravity | 1.2-1.7g per cubic meter |
| Coverage | 8-10 square meters per Kg at 30-90 μm film thickness |
| Film thickness | Not less than 100μm |
Instruction
| Application Voltage | 60-90 KV |
| Gun to Component Distance | 15-30CM |
| Curing Temperature | 180-200℃,10 min-15 min |
Storage stability
| Store in ventilated, dry, clean room, temperature < 25℃ | Relative humidity 50-65% |
| Away from direct sunlight, fire, heat | For best performance, use within 6 months |
Product process
Trade items of Products
| Trade terms | FOB, CIF,CRF,CNF |
| Payment terms | T/T, L/C , West Union ,Moneygram , Paypal etc |
| Payment condition | 30% deposit in advance,70% balance before shipment |
| Delivery time | 3-7 days after deposit |
| Shipping | By sea, by air and by express delivery |
| Sample Powder will be delivery by courier ,like DHL,UPS,FEDEX etc. 5-8 DAYS to arrival | |
| Official Order Powder will be ship by SEA .15-30 DAYS to arrival |
Quality control:
| Test Item | Test Method | Test Result |
| Film Thickness | ISO2360 | 60-80um |
| Pencil Hardness | ASTMD 3363 | HB-H |
| Bending | ISO1519 | ≤10mm |
| Grid Test 1mm | ISO2409 | 0 Class |
| Impulse Test | ASTMD2794 | Pass |
| Cupping Test | ISO1520 | ≥8mm |
| Heat Resistance 1000 hours | ISO6270-1 | Popping<1mm |
| Shigh gloss mirror chrome sliver spray paint powder coating Spray 1000 hours | ISO9227 |
Corrosion Spreading<1mm |
|
|
