| Brand Name: | Hsinda |
| Model Number: | Bonded Flash Silver Metallic |
| MOQ: | 300kg |
| Price: | US$4.26-4.86/kg |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Tons/Year |
High Quality Oil Repellency Bonded Flash Silver Metallic Epoxy Powder Coatings Paint
Product introduction:
Powder coating is the most recently developed of the surface finishing techniques in common use today, having become commercially established in the 1960s.
Powder painting is a material coating process, where dry, free-flowing powders are applied to a target electrostatically and then cured with heat to allow it to flow and form a “skin”. It is usually used to create a pre-determined hard finish, which maintains its color hue, and is tougher than conventional paint. After application of the powder coating, the parts enter a curing oven where with the addition of heat, a very durable weather resistant finish is achieved.
Powder coating is a new type of 100% solid powder coating which does not contain solvents. With no solvent, no pollution, energy and resources saving, recycling, environmental protection, higher performance, low health risk to workforce, economical advantages etc.
Product details:
| Product Details | |
| Type |
Epoxy Powder Coating; Polyester Powder Coating; Epoxy-Polyester Powder Coating |
| Color | RAL and PANTONE or customized |
| Surface Finish | electrostatic spray epoxy resin names paints powder coating with free sample |
| Gloss level | electrostatic spray epoxy resin names paints powder coating with free sample |
| Particle Size | Average 32-42μm |
| Specific Gravity | 1.2-1.7g per cubic meter |
| Coverage | 8-10 square meters per Kg at 30-90 μm film thickness |
| film thickness | Not less than 100μm |
| Application Recommendation | |
| Application Voltage | 60-90 KV |
| Gun to Component Distance | 15-30CM |
| Curing Temperature | 180-200ºC,10 min-15 min |
| Powder coated Film Mechanical Properties | |
| Adhesion | Cross-cut(2mm),no loss of adhesion |
| Impact Resistance | Direct impact 50kg/cm |
| Pencil Hardness | 1H-2H |
| Cupping Test | 6mm Mandrel |
| Bending Test | 5mm |
| Powder Coated Film Chemical Resistance | |
| Salt Spray Test | 5% NaCl Solution for 500 hours - No change |
| Acid Resistance | 5% HCL for 48 hours dip test - No change |
| Alkali Resistance | 5% NaOH for 48 hours dip test - No change |
| Storage Stability | |
| Store in ventilated, dry, clean room, temperature < 25ºC | |
| Relative humidity 50-65% | |
| Away from direct sunlight, fire, heat | |
| For best performance, use within 6 months | |
Our advantage:
♦ Our Powder finishes are available in a vast range of colors and finishes.
♦ Including metallic effect,chrome effect,wood grain,Candy Color Powder ,MDF powder
and other special effect,making them ideal for indoor decoration of steel furniture,
and outdoor metal products such as agricultural machinery, auto parts
♦ Our products have a good storage stability ,salt spray resistance,weatherability, exterior durability,
corrosion resistance,chemicals resistance, Highly Weather- and UV-Resistant,and also Good heat flow.

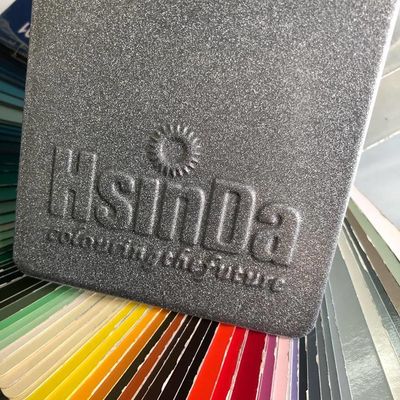

Product pictures:
Applications of Product:
| ♦ Electrical Household Appliances | ♦ Aerospace Area |
| ♦ Automotive Electronics | ♦ Fitness Equipment |
| ♦ Track Traffic | ♦ Medical Devices |
| ♦ Petroleum Pipes, Valve | ♦ Tools & Hardware |
| ♦ LED Lights, Outdoor Lamps | ♦ Radiator & Heat Sink |
| ♦ Glass Decoration | ♦ External Facilities |
Pack&shipping:
| Trade Terms | FOB, CIF, CRF, CNF |
| Payment Terms | T/T, L/C, West Union, PayPal etc. |
| Delivery time | 3-7 days after payment |
| Packaging | Size: 39*26*43 (unit:cm) Weight: N.W. 25kg G.W. 26kg |
|
By sea, by air, by courier |
Test:
| Test Item | Test Method | Test Result |
| Film Thickness | ISO2360 | 60-80um |
| Pencil Hardness | ASTMD 3363 | HB-H |
| Bending | ISO1519 | ≤10mm |
| Grid Test 1mm | ISO2409 | 0 Class |
| Impulse Test | ASTMD2794 | Pass |
| Cupping Test | ISO1520 | ≥8mm |
| Heat Resistance 1000 hours | ISO6270-1 | Popping<1mm |
| Salt Spray 1000 hours | ISO9227 | Corrosion Spreading<1mm |
|
|
