| Brand Name: | Hsinda |
| Model Number: | Bonded Flash Silver Gold Metallic |
| MOQ: | 300 kg |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 Tons/Year |
Product introduction:
Powder coating is a new type of 100% solid powder coating which does not contain solvents. With no solvent, no pollution, energy and resources saving, recycling, environmental protection, higher performance, low health risk to workforce, economical advantages etc.
Product details:
| Product Details | |
| Type |
Epoxy Powder Coating; Polyester Powder Coating; Epoxy-Polyester Powder Coating |
| Color | RAL and PANTONE or customized |
| Surface Finish | electrostatic spray epoxy resin names paints powder coating with free sample |
| Gloss level | electrostatic spray epoxy resin names paints powder coating with free sample |
| Particle Size | Average 32-42μm |
| Specific Gravity | 1.2-1.7g per cubic meter |
| Coverage | 8-10 square meters per Kg at 30-90 μm film thickness |
| film thickness | Not less than 100μm |
| Application Recommendation | |
| Application Voltage | 60-90 KV |
| Gun to Component Distance | 15-30CM |
| Curing Temperature | 180-200ºC,10 min-15 min |
| Powder coated Film Mechanical Properties | |
| Adhesion | Cross-cut(2mm),no loss of adhesion |
| Impact Resistance | Direct impact 50kg/cm |
| Pencil Hardness | 1H-2H |
| Cupping Test | 6mm Mandrel |
| Bending Test | 5mm |
| Powder Coated Film Chemical Resistance | |
| Salt Spray Test | 5% NaCl Solution for 500 hours - No change |
| Acid Resistance | 5% HCL for 48 hours dip test - No change |
| Alkali Resistance | 5% NaOH for 48 hours dip test - No change |
| Storage Stability | |
| Store in ventilated, dry, clean room, temperature < 25ºC | |
| Relative humidity 50-65% | |
| Away from direct sunlight, fire, heat | |
| For best performance, use within 6 months | |
Product advantages
Independent products and color matching R&D Center
Better resins from DSM, higher resin content to ensure superior quality and higher rate of coating ratio
Better pigments to ensure better covering stronger anti ultraviolet and weather ability,
achieve 30-40 um thickness requirements
Higher batch-to-batch stability to get your higher products quality pass rate,
higher customer satisfaction, and less customer complaints.
Service advantages
Quality control inspection and establishment
Painting quality analysis
Production line review
Technology/Chemicals product analysis

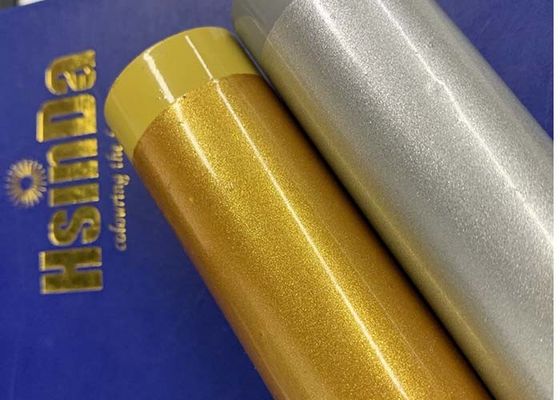

Product pictures:
Applications of Product:
| ♦ Electrical Household Appliances | ♦ Aerospace Area |
| ♦ Automotive Electronics | ♦ Fitness Equipment |
| ♦ Track Traffic | ♦ Medical Devices |
| ♦ Petroleum Pipes, Valve | ♦ Tools & Hardware |
| ♦ LED Lights, Outdoor Lamps | ♦ Radiator & Heat Sink |
| ♦ Glass Decoration | ♦ External Facilities |
Test :
| Test Item | Test Method | Test Result |
| Film Thickness | ISO2360 | 60-80um |
| Pencil Hardness | ASTMD 3363 | HB-H |
| Bending | ISO1519 | ≤10mm |
| Grid Test 1mm | ISO2409 | 0 Class |
| Impulse Test | ASTMD2794 | Pass |
| Cupping Test | ISO1520 | ≥8mm |
| Heat Resistance 1000 hours | ISO6270-1 | Popping<1mm |
| Salt Spray 1000 hours | ISO9227 | Corrosion Spreading<1mm |
What color are available to me ?
We usually carry a very large range of colors. Has access to over 300 paint color and texture. Feel to call us and ask if we stock your required color. If not we can customize.
Are all the colors the same price ?
NO. Some colors are more expensive due to their availability. Ingredients, such as texture powders, candies, metallic, glow in dark powders.
Where can I find pricing information ?
Our pricing structure is dependant on volume, technology and color choice. Please contact us for specific product pricing.
Need more info ?
We would love to help you with your Powder Coating questions and of course we look for ward to doing business with you. Let us know how we can help you.
What kind of payment terms you can accept ?
We accept PayPal, T/T , LC,and Western Union
|
|
