Product Details:
Payment & Shipping Terms:
|
| State: | Powder Coating | Main Type: | Epoxy Polyester |
|---|---|---|---|
| Sample Detail: | 2kg | Curing: | 180-200℃,10 Min-15 Min |
| Particle Size: | Average 30-42μm | Gloss: | N/W |
| Color: | Metallic | ||
| High Light: | Hammertone Powder Coating Paint,Electrostatic Powder Coating Paint,Epoxy Polyester Hammertone Powder Coat |
||

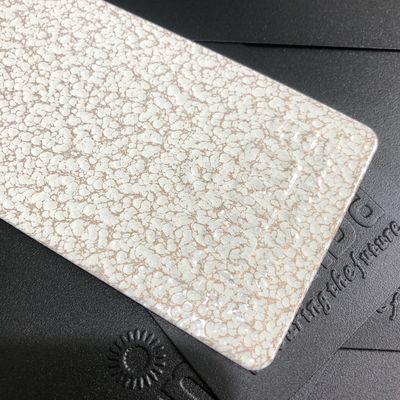

Hsinda Electrostatic Epoxy Polyester Hammer Texture Hammertone Powder Coating Paint
Product introduction:
The raw materials of Powder coating are resins, pigments, fillers, harderner ect. Compared with lyquid paint, powder coating is environmental friendly and can reduce costs. Powder coating can form a harder finish than conventional paint and can be applied more efficient.
| Color | RAL and PANTONE or customized |
| Gloss range | High/low/matt |
| Surface | sandy,wrinkled,hammer tone,metalic effect,woodeffect and etc |
| Particle size | Average 32 42um |
| Curing condition | 190 (object temperature) for 15 minutes |
| Coverage | 6-7 square meters per KG at 120um film thickness |
| Sheif life | 10 months in closed bag bellow 25 |
| Packaging | Polyethylene bag(inner) and paper carton(outer) |
| Storage | Stored in closed packages with dry environ ment below 25 |
Applications of Product
|
Quality control:
| Test Item | Test Method | Test Result |
| Film Thickness | ISO2360 | 60-80um |
| Pencil Hardness | ASTMD 3363 | HB-H |
| Bending | ISO1519 | ≤10mm |
| Grid Test 1mm | ISO2409 | 0 Class |
| Impulse Test | ASTMD2794 | Pass |
| Cupping Test | ISO1520 | ≥8mm |
| Heat Resistance 1000 hours | ISO6270-1 | Popping<1mm |
| Shigh gloss mirror chrome sliver spray paint powder coating Spray 1000 hours | ISO9227 |
Corrosion Spreading<1mm |
| Test Item | Test Method | Test Result |
| Film Thickness | ISO2360 | 60-80um |
| Pencil Hardness | ASTMD 3363 | HB-H |
| Bending | ISO1519 | ≤10mm |
| Grid Test 1mm | ISO2409 | 0 Class |
| Impulse Test | ASTMD2794 | Pass |
| Cupping Test | ISO1520 | ≥8mm |
| Heat Resistance 1000 hours | ISO6270-1 | Popping<1mm |
| Salt Spray 1000 hours | ISO9227 | Corrosion Spreading<1mm |
Introduction of Company:
rade items of products
| Trade terms | FOB,CIF,CRF,CNF |
| Payment terms | T/T,L/C,West Union,Moneygram,Paypal etc |
| Payment condition | 70% deposit in advance,30% balance before shipment |
| Delivery time | 3-7 working day after deposit |
| Packing |
Inner packing:polyethylene bag Outer packing:paper carton |
|
Net Weight:20 or 25Kg Gross Weight:21 or 26kg |
|
| shipping | By sea,by air and by express delivery |
