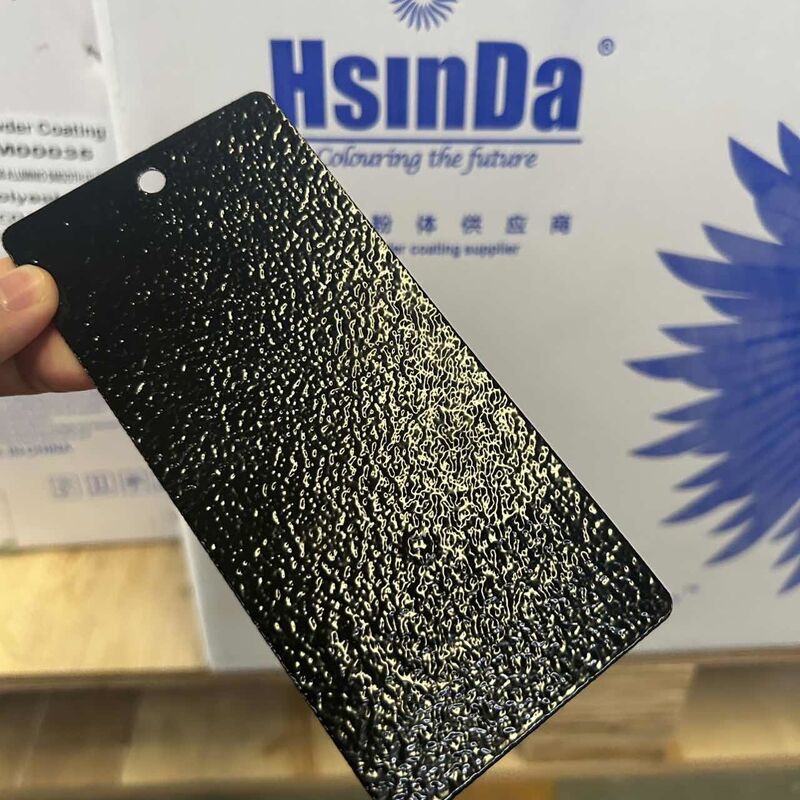

RAL9005 Black Wrinkle Texture Tgic Thermoset Powder Coating for Metal Surface Protection

All Category

Epoxy Polyester Powder Coating

Wood Grain Powder Coating

Miss. Arya

esu.sales7@hsindapowdercoating.com

+86 18190826106

+86 18190826106

Contact Now

RAL9005 Black Wrinkle Texture Tgic Thermoset Powder Coating for Metal Surface Protection

Brand Name:	Hsinda
Model Number:	customized color
MOQ:	300kg
Price:	2.8-6.58USD/KG
Packaging Details:	Inner packing :polyethylene bag; Outer packing :paper carton
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,

Detail Information

Product Description

Detail Information

Place of Origin:

SiChuan,China(Mainland)

Certification:

ISO9001; SGS; ROHS

Main Raw Material:

Epoxy Polyester Resin

Application Method:

Electrostatic Spray Powder Coating

Gloss:

Customized Color &texture

Sample Details:

1 Kg Will Be Free

Raw Materials Brand:

DSM Resin Etc

Curing:

180-200℃,10 Min-15 Min

Particle Size:

Average 30-40μm

Texture:

Customized Texture

Supply Ability:

50000TONS/YEAR

Highlight:

RAL9005 Black Powder Coating

Wrinkle Texture Thermoset Powder Coating

Tgic Polyester Powder Coating

Product Description

Product Overview

RAL9005 Black Wrinkle Texture Polyester Resin TGIC Powder Coating Paint is a black crocodile-texture polyester powder coating formulated for metal surfaces. The Hsinda metallic series powder coating blends seamlessly with metal powder to create a rich, colorful, and dazzling metal finish. Compared with traditional solvent-based paint, it is non-toxic, odorless, and more environmentally friendly. A single spray application can meet or exceed the effect of traditional solvent paint spraying, delivering a surface that is more refined, more perfect, and rich in metallic texture.

Classification of Powder Coatings

Functional powder coatings: Antibacterial, super weather resistance, oil resistance, heat dissipation, high temperature resistance, and more.
Colorful powder coatings: RAL, Pantone, and customized colors.
Special effects powder coatings: Candy, glow in the dark, clear top coat, metallic, chrome silver mirror effect, thin coat, MDF powder coating, and more.
Texture powder coatings: Hammer, wood grain, water grain, crocodile skin, sand grain, wrinkle, and more.

Composition & Resin Types

Powder coatings are based on resin, pigments, curing agents, and additives.
Resin (including epoxy, polyester, and hybrid) provides the basic performance of the coating.
Pigments provide color and effects, such as metallic or hammer finishes.
Curing agents react with the resin to form a continuous protective film.
Additives are used to promote variations in performance or surface effects.
Epoxy powder coating: Offers the best corrosion protection.
Polyester powder coating: Offers the highest exterior stability and performance.
Our products are suitable for both indoor and outdoor applications.
Our products carry SGS, TUV, RoHS, and ISO certifications.

Applications

Electrical Household Appliances
Aerospace Area
Automotive Electronics
Fitness Equipment
Track Traffic
Medical Devices
Petroleum Pipes, Valves
Tools & Hardware
LED Lights, Outdoor Lamps
Radiator & Heat Sink
Glass Decoration
External Facilities

Product Detail & Test Results

Test Item	Test Method	Test Result
Film Thickness	ISO2360	60–80 μm
Pencil Hardness	ASTM D 3363	HB–H
Bending	ISO1519	≤10 mm
Grid Test 1 mm	ISO2409	0 Class
Impulse Test	ASTM D2794	Pass
Cupping Test	ISO1520	≥8 mm
Heat Resistance 1000 hours	ISO6270-1	Popping <1 mm
Salt Spray 1000 hours	ISO9227	Corrosion Spreading <1 mm

Packaging & Shipping

Trade Terms	FOB, CIF, CRF, CNF
Payment Terms	T/T, L/C, West Union, PayPal, etc.
Delivery Time	3–7 days after payment
Packaging	Size: 39 × 26 × 43 cm; Weight: N.W. 25 kg, G.W. 26 kg
Shipping	By sea, by air, by courier
