Brand Name: | Hsinda |
Model Number: | ral/pantone color |
MOQ: | 300kg |
Price: | Negotiable |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50000TONS/YEAR |

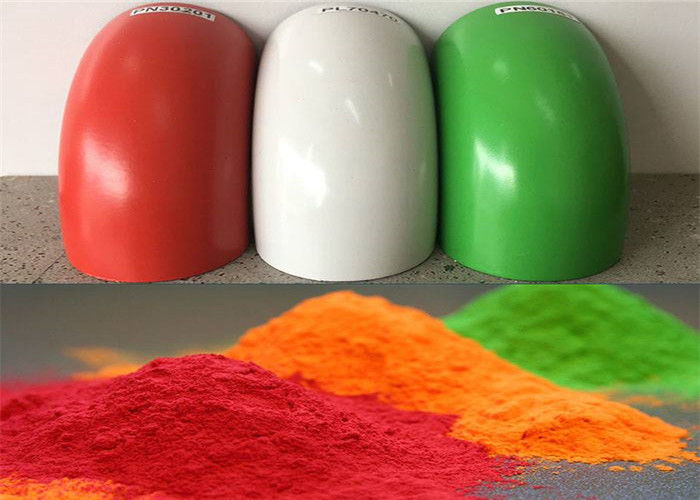

Superior Gloss Thermoset Powder Coating , Oil Resistance Hybrid Powder Coating
Main feature
A wide range of finishes and colours including metallic, glossy, rough and textured.
· Corrosion resistance.
· Powder coating can be applied to most metal components including steel, Zinc, brass and aluminium.
· The durable finish provides a surface finish which is less prone to chipping, marking and scratching.
· Powder coating can be applied to components used internally and externally.
Testing items | Standards | Methods | Test index |
Iimpact strength | ISO 6272 | GB1732-1993 | 40cm |
Bending resistance | ISO 1519 | GB/T6742-1986 | 3mm |
Adhesion | ISO 2409 | GB/T9286-1998 | Grade 0 |
Cupping test | ISO 1520 | GB/T9753-1988 | 5mm |
Pencil hardness | ASTM D3363 | GB/T6739-1996 | H-2H |
Salt spray test | ISO 7253 | GB/T1771-1991 | More than500 hours |
H&humidity test | ISO 6270 | GB/T17740-1979 | More than1000 hours |
Weatherability | ASTM G151 | GB/T1865-1997 | 240(QUV B313) |
2. Other product
3. product detail
Type |
Epoxy Powder Coating; Polyester Powder Coating; Epoxy-Polyester Powder Coating |
Color | Ral&Pantone color |
Surface Finish | Superior gloss and color retention |
Particle Size | Average 32-42μm |
Specific Gravity | 1.2-1.7g per cubic meter |
Coverage | 8-10 square meters per Kg at 30-90 μm film thickness |
Film thickness | Not less than 100μm |
4. Instruction
Application Voltage | 60-90 KV |
Gun to Component Distance | 15-30CM |
Curing Temperature | 180-200℃,10 min-15 min |
5. Storage stability
Store in ventilated, dry, clean room, temperature < 25℃ | Relative humidity 50-65% |
Away from direct sunlight, fire, heat | For best performance, use within 6 months |
Powder coatings are based on Resin,Pigments,Curing Agents,Additives.
2.Trade items of Products
Trade terms | FOB, CIF,CRF,CNF |
Payment terms | T/T, L/C , West Union ,Moneygram , Paypal etc |
Payment condition | 30% deposit in advance,70% balance before shipment |
Delivery time | 3-7 days after deposit |
Shipping | By sea, by air and by express delivery |
Sample Powder will be delivery by courier ,like DHL,UPS,FEDEX etc. 5-8 DAYS to arrival | |
Official Order Powder will be ship by SEA .15-30 DAYS to arrival |
