Thermoset Powder Coating
>
RAL7032 Wrinkle Texture Powder Coating Paint for Electrical Cabinet Panel

RAL7032 Wrinkle Texture Powder Coating Paint for Electrical Cabinet Panel

Brand Name: China Hsinda
Model Number: RAL7032
MOQ: Negotiation
Price: Negotiation
Packaging Details: Size: 39*26*43 (unit:cm) Weight: N.W. 25kg G.W. 26kg
Payment Terms: T/T, Western Union, L/C
Detail Information
Place of Origin:
CHINA
Certification:
ISO,Rohs,SGS
Effect:
Wrinkle Texture
Color:
RAL 7032 Grey
Gloss:
Oem
Substrate:
ALL METAL SURFACE
Curing:
180-200 Degree/6-15minutes
Quality:
Qualitcoated
Supply Ability:
50000 Tons/Year
Product Description

RAL7032 Wrinkle Texture Powder Coating Paint for Electrical Cabinet Panel



ANY APPLICATION, ANY COLOR
Discover quality powder coatings in a wide range of chemistries, thousands of colors, and stunning special effects, available in low or high quantities. Our powders are perfect for industrial production, manufacturing, or creative design applications. Durable, beautiful, and expertly formulated—elevate your finish with HSINDA Powder Coatings



At HSINDA we know color. With over 10,000 colors in our powder database and a dedicated team of color experts, it’s no surprise. We can't put everything online, so contact us for sample chips, colors cards or more! Our shades include standard color ranges such as RALs, Federal Standards, ANSI and more, as well as elegant blacks and whites, inviting browns, greys, silvers and bronzes, eye popping neons, warm earthy tones, soft pastels, candy colors and striking translucents.



HSINDA offers a vast warray of experience and information at your disposal. Explore our excellent technical tools, ideal for addressing a problem or for training purposes, including webinars available for viewing at your convenience, instructional videos, technical guides, and an ebook designed to navigate you through frequent challenges. Our guides have been written by our technical staff who have many years experience in all aspects of choosing powders, and solving technical problems.



Product introduction:

RAL7032 Wrinkle Texture Powder Coating Paint for Electrical Cabinet Panel 0


Powder painting is a material coating process, where dry, free-flowing powders are applied to a target electrostatically and then cured with heat to allow it to flow and form a “skin”. It is usually used to create a pre-determined hard finish, which maintains its color hue, and is tougher than conventional paint. After application of the powder coating, the parts enter a curing oven where with the addition of heat, a very durable weather resistant finish is achieved.



Powder coating is a new type of 100% solid powder coating which does not contain solvents. With no solvent, no pollution, energy and resources saving, recycling, environmental protection, higher performance, low health risk to workforce, economical advantages etc.



Product details:



Product Details
Type

Epoxy Powder Coating; Polyester Powder Coating;

Epoxy-Polyester Powder Coating

Color RAL and PANTONE or customized
Surface Finish electrostatic spray epoxy resin names paints powder coating with free sample
Gloss level electrostatic spray epoxy resin names paints powder coating with free sample
Particle Size Average 32-42μm
Specific Gravity 1.2-1.7g per cubic meter
Coverage 8-10 square meters per Kg at 30-90 μm film thickness
film thickness Not less than 100μm
Application Recommendation
Application Voltage 60-90 KV
Gun to Component Distance 15-30CM
Curing Temperature 180-200ºC,10 min-15 min
Powder coated Film Mechanical Properties
Adhesion Cross-cut(2mm),no loss of adhesion
Impact Resistance Direct impact 50kg/cm
Pencil Hardness 1H-2H
Cupping Test 6mm Mandrel
Bending Test 5mm
Powder Coated Film Chemical Resistance
Salt Spray Test 5% NaCl Solution for 500 hours - No change
Acid Resistance 5% HCL for 48 hours dip test - No change
Alkali Resistance 5% NaOH for 48 hours dip test - No change
Storage Stability
Store in ventilated, dry, clean room, temperature < 25ºC
Relative humidity 50-65%
Away from direct sunlight, fire, heat
For best performance, use within 6 months



Our advantage:

♦  Our Powder finishes are available in a vast range of colors and finishes.

♦  Including metallic effect,chrome effect,wood grain,Candy Color Powder ,MDF powder

and other special effect,making them ideal for indoor decoration of steel furniture,

and outdoor metal products such as agricultural machinery, auto parts

♦  Our products have a good storage stability ,salt spray resistance,weatherability, exterior durability,

corrosion resistance,chemicals resistance, Highly Weather- and UV-Resistant,and also Good heat flow.



Product pictures:

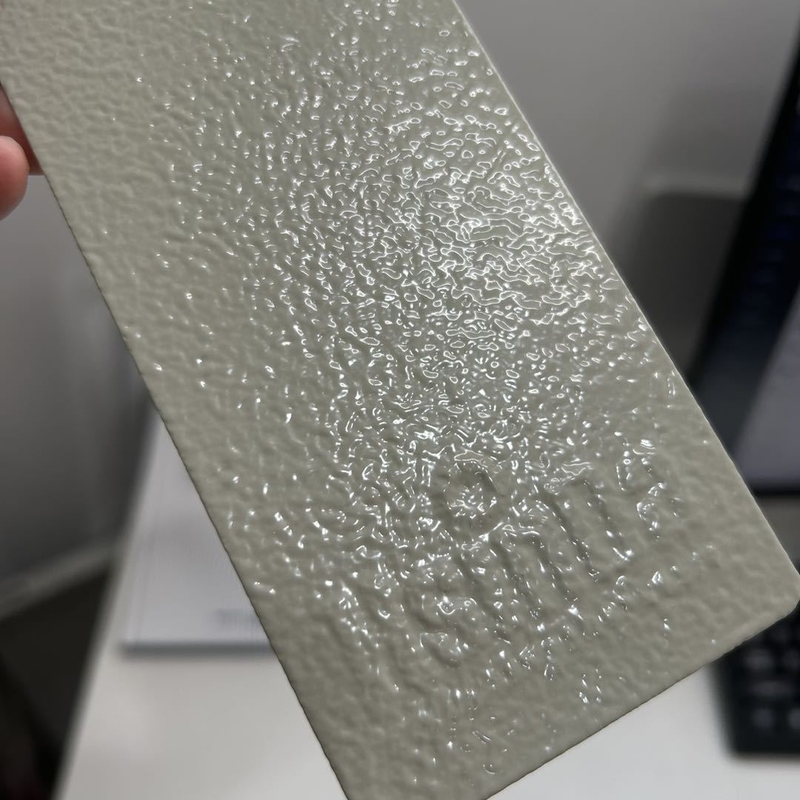

RAL7032 Wrinkle Texture Powder Coating Paint for Electrical Cabinet Panel 1



Applications of Product:



♦  Electrical Household Appliances ♦ Aerospace Area
♦ Automotive Electronics ♦ Fitness Equipment
♦ Track Traffic ♦ Medical Devices
♦ Petroleum Pipes, Valve ♦ Tools & Hardware
♦ LED Lights, Outdoor Lamps ♦ Radiator & Heat Sink
♦ Glass Decoration ♦ External Facilities
